Pop Can

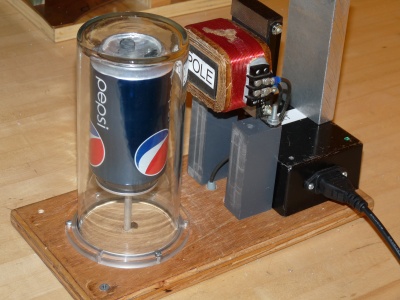

In this exhibit, we can see the mystery of the rotating pop can that act at a distance.

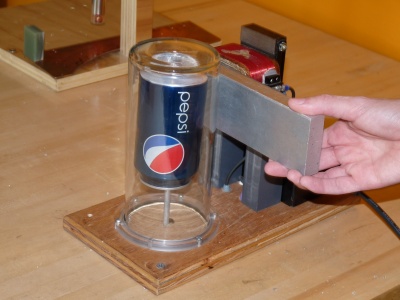

To begin press the bottom "START". Use the aluminum bar to cover 2/3  of the surface of the  magnet pole face and observe as the can begins to rotate.



NOW AN EXPLANATION ON HOW THIS WORKS



1- The magnet produces an alternating magnetic field

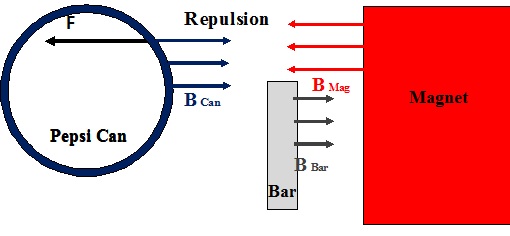

2- Initially the rising magnetic field from the magnet induces currents in metallic objects (the can and the aluminum bar).

3- These currents generate magnetic fields in the opposite direction so that the objects are repelled.



4- Next, when the field reaches its maximum value, its rate of change becomes zero. The induced field becomes also zero.

5- The can becomes quickly demagnetized because it is thin.

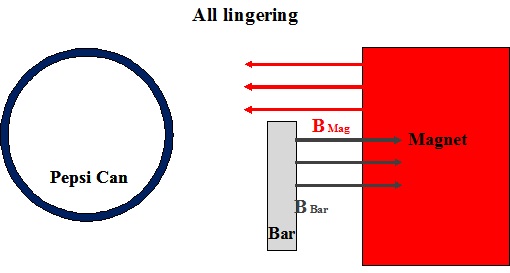

6- But the current in the thicker aluminum bar continues longer, so the aluminum bar remains magnetized for a little while.

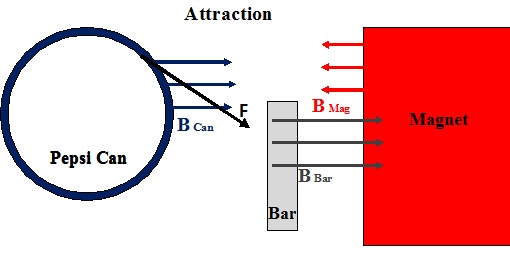

7- Next the field of the magnet begins decreasing; it induces a field in the opposite direction. The can gets magnetized the new way, but the aluminum bar retains the “old” magnetization and attracts the magnetized can.

8- Voila! rotation begins

You can try changing the position of the aluminum bar

You can also try using other metal sheets from the table.
